BP-C131WD/C131PW

Usher in a new era of
sustainability

General

Model BP-C131WD BP-C131PW
Type Desktop
Engine speed A4 (8 1/2" x 11")*1 Max. 31 ppm
Control panel display 4.0-inch colour LCD touchscreen
Paper size Max. A4 (8 1/2" x 11"), min. A6 (5 1/2" x 8 1/2")
Paper capacity
(80 g/m2)		 Standard 300 sheets
(250-sheet tray and 50-sheet multi bypass tray)
Maximum 800 sheets
(300 sheets & optional 500-sheet paper feed unit)
Paper weight Tray 1 60 g/m2 to 176 g/m2 (16 lbs bond to 65 lbs cover)
Tray 2
(BP-CS13)		 60 g/m2 to 200 g/m2 (16 lbs bond to 110 lbs index)
Multi bypass tray 60 g/m2 to 200 g/m2 (16 lbs bond to 110 lbs index)
First print time*2 – Colour: 8.5 sec.    B/W: 6.5 sec.
Warm-up time*3 33 sec.
Memory 2 GB (copy/print shared)    16 GB eMMC
Power requirements Rated local AC voltage ±10%, 50/60 Hz
Power consumption Max. 1.15 kW (220 V to 240 V)
Dimensions (W x D x H)*4 410 x 410 x 399 mm
(16 5/32" x 16 5/32" x 15 23/32")		 410 x 410 x 369 mm
(16 5/32" x 16 5/32" x 14 17/32")
Weight (approx.) 22 kg (48.6 lbs) 19 kg (41.9 lbs)

Copier

Model BP-C131WD BP-C131PW
Original paper size Max. A4 (8 1/2" x 11") –
First copy time*5 Colour: 7.2 sec.    B/W: 6.0 sec. –
Continuous copy Max. 999 copies –
Resolution Scan 600 x 600 dpi, 600 x 400 dpi*6, 600 x 300 dpi*7 –
Print 600 x 600 dpi –
Gradation Equivalent to 256 levels –
Zoom range 25% to 400% (25% to 200% using DSPF) in 1% increments –
Preset copy ratios Metric: 10 ratios (5R/5E), inch: 7 ratios (4R/3E) –

Scanner

Model BP-C131WD BP-C131PW
Scan method Push scan (via control panel)
Pull scan (TWAIN-compliant application)		 –
Scan speed*8 [One-sided] Colour Max. 20 originals/min. –
[One-sided] B/W Max. 30 originals/min. –
[Two-sided] Colour Max. 40 originals/min. –
[Two-sided] B/W Max. 60 originals/min. –
Resolution Push scan 100, 150, 200, 300, 400, 600 dpi –
Pull scan 75, 150, 200, 300, 400, 600 dpi
50 dpi to 9,600 dpi via user setting*9		 –
File formats TIFF, PDF, JPEG*10 –
Scan destinations Email/desktop*11/FTP server/network folder (SMB)/USB drive –

Printer

Model BP-C131WD BP-C131PW
Resolution 600 x 600 dpi
Interface USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 a/b/g/n/ac)
Supported OS Windows Server 2016, Windows Server 2019, Windows Server 2022, Windows 10, Windows 11,
Mac OS 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11, 12, 13, 14
Network protocols TCP/IP
Printing protocols LPR, Raw TCP (port 9100), FTP for downloading print files, IPP, WSD
PDL PCL 6 emulation, PostScript 3 emulation
Available fonts 80 fonts for PCL, 136 fonts for PostScript 3 emulation

Facsimile

Model BP-C131WD BP-C131PW
Compression method MH/MR/MMR/JBIG –
Communication protocol Super G3/G3 –
Transmission time Less than 3 seconds*12 –
Modem speed 33,600 bps to 2,400 bps with automatic fallback –
Transmission resolution From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi) –
Recording size A4 to A5 (8 1/2" x 11" to 5 1/2" x 8 1/2") –
Memory 64 MB (built-in) –
Grayscale levels Equivalent to 256 levels –

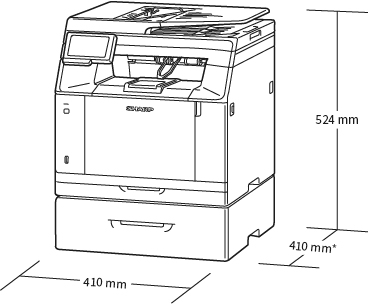

BP-C131WD

  • * 658 mm when multi bypass tray is extended.
  • BP-C131WD shown with optional equipment.

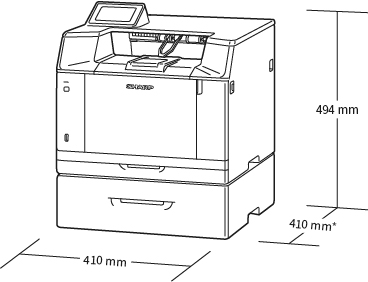

BP-C131PW

  • * 658 mm when multi bypass tray is extended.
  • BP-C131PW shown with optional equipment.
*1:
Short-edge feeding.
*2:
Short-edge feeding of A4 (8 1/2" x 11") sheets from paper tray, printer in fully ready condition. May vary depending on operating conditions and environment.
*3:
In a standard measurement environment. May vary depending on operating conditions and environment.
*4:
Including protuberances.
*5:
Short-edge feeding of A4 (8 1/2" x 11") sheets from paper tray, using document glass, MFP in fully ready condition. May vary depending on operating conditions and environment.
*6:
Not available when using DSPF.
*7:
Not available when using document glass.
*8:
Based on Sharp’s A4 standard chart, using document feeder, short-edge feeding, and factory default settings. Scan speed will vary depending on the type of document and the scan settings.
*9:
Resolution will vary depending on the size of the scanned area.
*10:
Colour/greyscale only.
*11:
Requires Network Scanner Tool Lite.
*12:
Based on Sharp’s standard chart with approx. 700 characters (A4 or 8 1/2" x 11" short-edge feeding) at standard resolution in Super G3 mode, 33,600 bps, JBIG compression.
  • Design and specifications are subject to change without prior notice.
  • AirPrint and Mac are trademarks of Apple Inc., registered in the US and other countries. Wi-Fi Direct is a registered trademark of Wi-Fi Alliance®. Wi-Fi Protected Setup is a trademark of Wi-Fi Alliance®. Windows and Windows Server are trademarks of the Microsoft group of companies.
